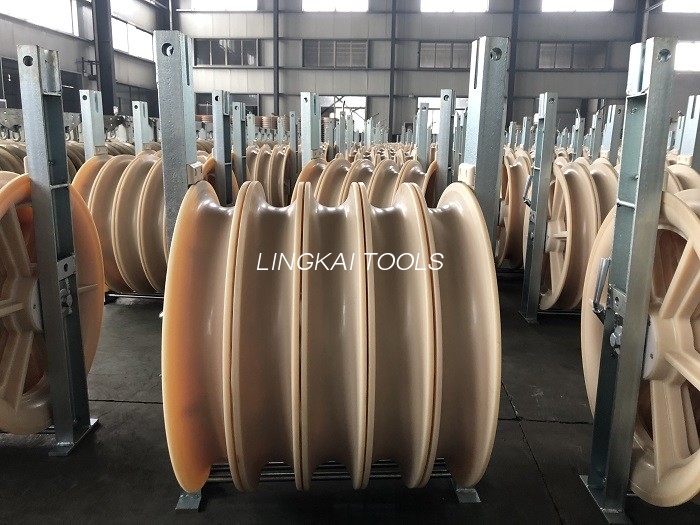

Bundled Three Nylon Wheel Conductor Stringing Blocks For Transmission Line

Bundled Three Nylon Wheel Conductor Stringing Blocks For Transmission Line
Bundled Three Nylon Wheel Conductor Stringing Blocks For Transmission Line Bundled Three Nylon Wheel Conductor Stringing Blocks For Transmission Line

Large Image :  Bundled Three Nylon Wheel Conductor Stringing Blocks For Transmission Line

Product Details:
Place of Origin: Ningbo
Brand Name: LINGKAI
Certification: ISO
Model Number: 750MM STRINGING BLOCKS
Payment & Shipping Terms:
Minimum Order Quantity: 50 Sets
Price: Get the latest
Packaging Details: Oversea Shipping Standard Packing in Container
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000sets/month
Detailed Product Description
Production Capacity: 1000 PCs Per Month Stringing Block: Overhead Conductor Stringing Blocks
Inner Diameter Of Sheave: 640mm Conductor Diameter: Up To 34mm
Outer Diameter Of Sheave: 750mm Material Of Sheave: MC NYLON
High Light:

Three Nylon Wheel Conductor Stringing Blocks

,

Transmission Line Bundled Conductor Stringing Blocks

,

Bundled Transmission Line Tools

Bundled Three Wheel Nylon Conductor Stringing Block Pulley Transmission Line Tools And Equipment





Product Description

750MM Overhead Conductor Stringing Blocks (Running out Blocks) are used for overhead transmisson line bundled conductors or OPGW stringing. The sheave is made in MC Nylon.



Bundled Three Nylon Wheel Conductor Stringing Blocks For Transmission Line 0



750MM Nylon Sheaves Conductor Stringing Blocks

Item No. Model ACSR Size Range (mm²) Working Load (KN) Weight (kg) Material of Sheave
10131 SHDN750 500-600 30 39 Nylon, optional can be lined with neoprene
10132 SHSQN750 500-600 60 98
10133 SHWQN750 500-600 100 156

Application: It is suitable to string single, two or four stranded aluminum and ACSR conductors on tangent structures. Compression sleeves, swivel connectors, and pulling rope connectors can pass through the groove. The sheave is made in high strength nylon. All the sheaves are mounted on ball bearings, the central sheave is specially strengthened for passing of steel wire rope. The frame is made in galvanized steel.

Note:

1. Clevis fitting are optional, please specify when ordering. Customized blocks could be supplied on request. The data in the model means the outer diameter of sheave X width of sheave (mm).

2. The sheave size outer diameter X inner diameter X width: 750mm X 640mm X 110mm



Bundled Three Nylon Wheel Conductor Stringing Blocks For Transmission Line 1
