Product Details:
Payment & Shipping Terms:
|
| Model: | JJM3Q | Name: | WIRE ROPE CASPTNA |
|---|---|---|---|
| Rated Load: | 3T | Engine: | Gasoline |
| Driven: | Belt Driven | Apply: | Line Construction Site |
| High Light: | gasoline powered winch,gas powered winch |
||

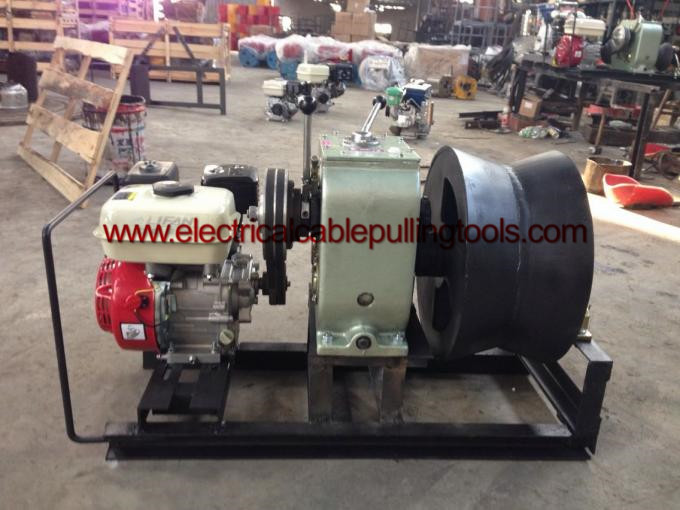

3 Ton Gasoline Engine Portable Winch Wire Rope Capstan in Line Transmission Site
Application
3 Ton Cable Pulling Machine With Gasoline Engine is used for tower erection,pole setting,stringing wire in electrical power line construction.
Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.
Technical Data
| Model NO. | Gear | Rated Pulling Force(KN) | Pulling Speed(m/min) | power |
| JJM3Q | slow | 20 | 10 | 6HP gasoline engine |
| quick | 10 | 18 | ||
| reverse | 9 |
