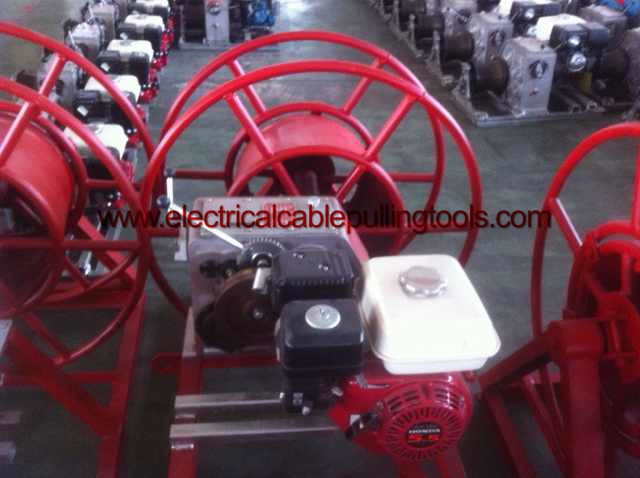

Petrol Engine Powered Cable Winch Puller 5 Ton For Conductor Taking Up / Stringing

Petrol Engine Powered Cable Winch Puller 5 Ton For Conductor Taking Up / Stringing
Petrol Engine Powered Cable Winch Puller 5 Ton For Conductor Taking Up / Stringing Petrol Engine Powered Cable Winch Puller 5 Ton For Conductor Taking Up / Stringing

Large Image :  Petrol Engine Powered Cable Winch Puller 5 Ton For Conductor Taking Up / Stringing

Product Details:
Place of Origin: Ningbo China
Brand Name: Linkai
Certification: ISO
Model Number: SJZ
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Get the latest pric e
Packaging Details: Wooden case
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1000set/week
Detailed Product Description
Model: SJZ10C Power Hp: 4
Speed Rmp: 2600 Drum Feature: Detachable
Drum Capacity: LGJ460 Weight: 210kg
High Light:

gasoline powered winch

,

portable capstan winch

Petrol Engine Powered Cable Pulling Winch 5 Ton For Conductor Taking up and Stringing



Wire take up mahcine Main Specifications

Item Number 08151 08152
Model SJZ10B SJZ10C
Engine Type Honda GX160 gasoline engine Z170F diesel engine
Power (hp) 5.5 4
Rotational Speed (rpm) 3600 2600
Max. Take-up Force (kN) 13.2 10.9
Take-up Speed (m/min) 9.8~80 10.5~85.4
Reel Capacity (m) LGJ95 600 600
LGJ120 460 460
LGJ185 320 320
Weight (kg) 136 165
Overall Dimension (m) 1.2×0.85×0.95 1.2×0.85×0.95



Diesel /gasoline Engine Speedy Powered Hoist Winch( Wire Rope Winch) is used for tower erection,pole setting,stringing wire in electrical power line construction.

Winch can be modified as per requirement, such as changing curve capstan into straight even

cylindrical shape and coming with steel rope.



Diesel engine wire stringing machine, wire take up winch it has

Speedy and Efficient;

Safe and Reliable;

Compact structure;

Small volume;

Light in weight;

Petrol Engine Powered Cable Winch Puller 5 Ton For Conductor Taking Up / Stringing 0
