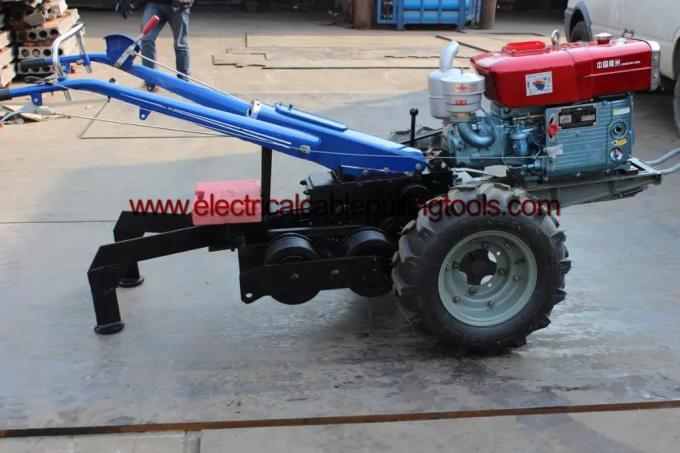

Two Wheel Walking Tractor Cable Pulling Machine For Cable Pulling Wire Rope Pulling Hand Tractor

Two Wheel Walking Tractor Cable Pulling Machine For Cable Pulling Wire Rope Pulling Hand Tractor
Two Wheel Walking Tractor Cable Pulling Machine For Cable Pulling Wire Rope Pulling Hand Tractor

Large Image :  Two Wheel Walking Tractor Cable Pulling Machine For Cable Pulling Wire Rope Pulling Hand Tractor

Product Details:
Place of Origin: Ningbo China
Brand Name: Linkai
Certification: ISO
Model Number: 12-A 12-B
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Get the latest
Packaging Details: Std exported packing
Delivery Time: 5-8work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200sets/month
Detailed Product Description
Traction Force: 60KN Name: Tractor Walking Winch
Feature: 2 Drums Type: Hand Tractor
Model: 12-A Ground Clearance: 150mm
High Light:

gasoline powered winch

,

gas powered winch

5 Ton Two Wheel Walking Tractor Winch for Cable Pulling Wire Rope Pulling Hand Tractor



Easy Operate 5 Ton Diesel Engine Driven Walking Tractor Winch for Cable Pulling

5 Ton Diesel Tractor Cable Puller Winch Walking Tractor Winch is used for stringing wire in electrical power line construction, crane lifting.



Gear reversalⅡ reversalⅡ

(T)

Traction force

6 37 20 12 / /

(M/MN)

Traction speed

11.7 18.9 34.4 55.6 6.2 21.3



Cable Pulling Machine 5 Ton Hand Tractor Winch with Double Drum Winch

Item number Model

(MM)

Ground

Clearance

(MM)

wheel-base

(HP)

Power

(RPM)

speed

(KM/H)

Travel speed

(MM)

Outline

size

(KG)

Weight

09171 12-A 150 1040 15 2000 3-13 2670x1040x1300 550
09172 12-B 150 1040 15 2000 3-13 2670x1040x1300 600




5 Ton Two Wheel Walking Tractor Winch for Cable Pulling

Application

It is applicable to pull no-twist wire rope.

It is assembled from Dongfeng Walking Tractor of Type 12.

It is equipped with forward gear and reverse gear.

It has its own walking device.



Features

1)Four gear,forward gear and reverse gear

2)Double drum,seven groove,protect the wire rope

3)Speedy and convenient

4)Easy operation

5)High quality
