B Series Cable And Rope Entrance Protection Trench Roller Cable Guide Roller

B Series Cable And Rope Entrance Protection Trench Roller Cable Guide Roller
B Series Cable And Rope Entrance Protection Trench Roller Cable Guide Roller B Series Cable And Rope Entrance Protection Trench Roller Cable Guide Roller B Series Cable And Rope Entrance Protection Trench Roller Cable Guide Roller

Large Image :  B Series Cable And Rope Entrance Protection Trench Roller Cable Guide Roller

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SHC
Payment & Shipping Terms:
Minimum Order Quantity: 2 pcs
Price: negotiable
Packaging Details: Carton
Delivery Time: 5 - 8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000pcs/month
Detailed Product Description
Model: SHC100C Tube Dia: 100mm
Using: Protecting Cable Apply: Underground Site
Weight: 20 Kg Material: Nylon
High Light:

electrical wire pulling tools

,

conductor pulling tools

B Series Cable And Rope Entrance Protection Trench Roller Cable Guide Roller



Application Cable And Rope Entrance Protection Trench Roller Cable Guide Roller

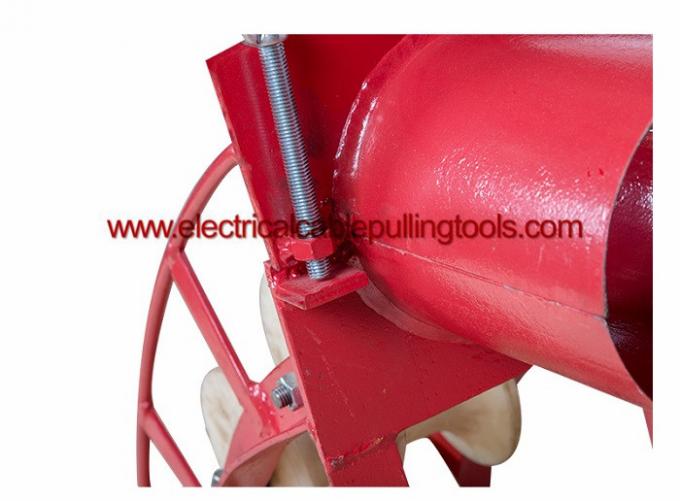

B Series lead in cable entrance protection roller with three nylon wheels is used for pulling underground cables.It has three rollers which are made of nylon.The curvature radius is 450mm.The roller can be placed in the tube orifice at arbitrary angle,lockable.

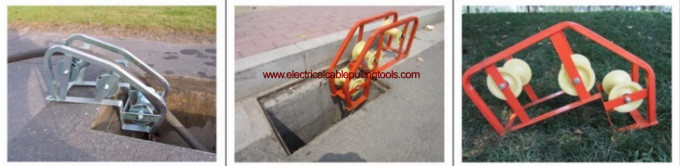

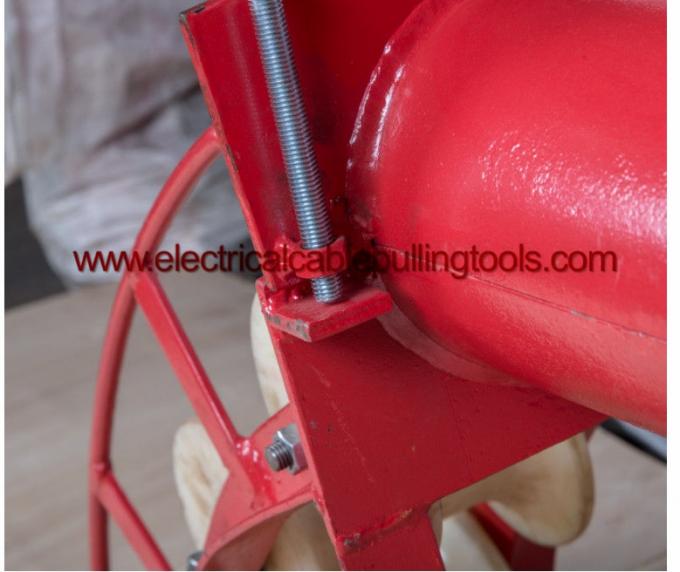

B Series Cable And Rope Entrance Protection Trench Roller Cable Guide Roller 0 B Series Cable And Rope Entrance Protection Trench Roller Cable Guide Roller 1

Technical Data

B Series SH150C Cable Pulling Pulley Block Guide Roller Nylon Wheel

Model Tube diameter(mm) Weight(kg)
SH80C 80 17
SH90C 90 18
SH100C 100 20
SH130C 130 20.5
SH150C 150 21
SH180C 180 22
SH200C 200 23

B Series Cable And Rope Entrance Protection Trench Roller Cable Guide Roller 2

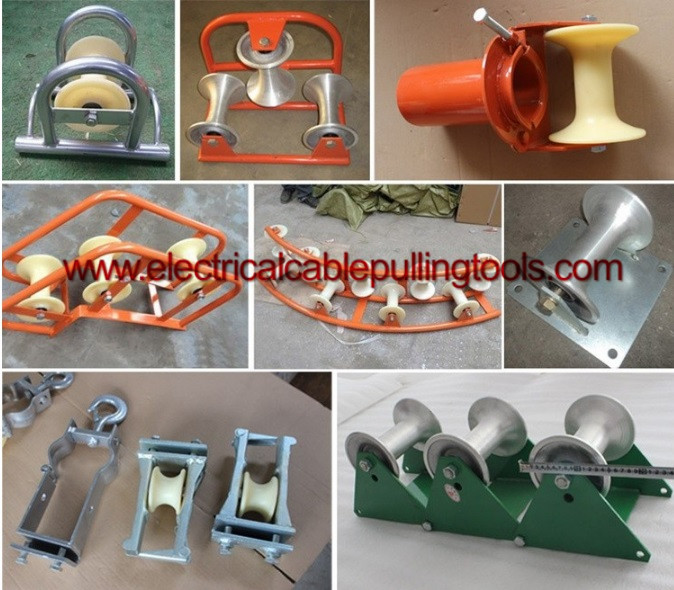

Pictured: Trench Cable Rollers

Cable rollers should always be used when pulling cables.
Straight cable runs are pulled in using straight cable rollers suitably placed in the cable trench to prevent the cable being dragged on the trench bottom or in mud.

Cable roller spacing is dependent on cable type being laid and the cable pulling tension along the route. Leading cable rollers are used to support the cable over the entire drum width immediately before being pulled into the trench.
Cable laying applications with bends in the route require skid plates of a radius greater than the cables minimum dynamic bending radius.

B Series Cable And Rope Entrance Protection Trench Roller Cable Guide Roller 3
