Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SLE
Payment & Shipping Terms:
Minimum Order Quantity: 5 pcs
Price: negotiable
Packaging Details: Carton
Delivery Time: 5 - 8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 pcs / month
Detailed Product Description
Name: Cable Mesh Sock Grip Suit: OPGW, ADSS
Load: 10 Kn Model: SLE
Wire Dia: 7 ~ 11 Mm Apply: OPGW Site
High Light:

electrical wire pulling tools

,

wire pulling tools

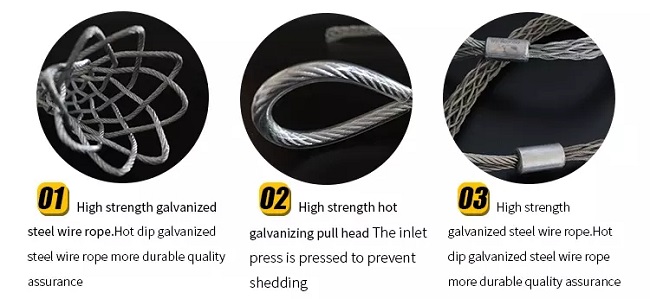

OPGW Construction Mesh Cable Sock Grips Single Thimble Cable Mesh Sock Grip



Cable Mesh Sock Grip Technical Data

OPGW Site Optical Fiber Cable Tools Construction Mesh For Telecom Cable

Item number Model Applicable groud wire diameter(mm) Load(kN)
17141 17141s SLE(S)-1 7-11 10
17142 17142s SLE(S)-1.5 11-15 15
17143 17143s SLE(S)-2 15-18 20
17144 17144s SLE(S)-2.5 18-22 25

OPGW Construction Mecsh Cable Sock Grips Application

This mesh cable gripper is used for the construction of APGW and ADSS,ADSS means all-dielectric self-suppoting optical fiber cable, OPGW refers to the optical power ground wire.

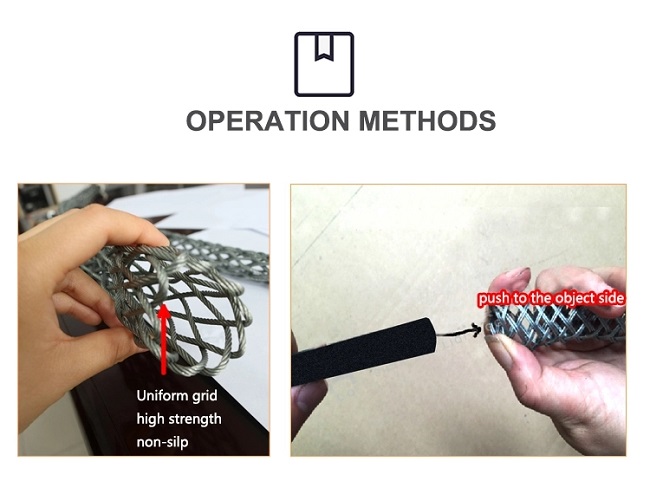

Operation Method:

OPGW Construction Mesh Cable Sock Grips Single Thimble Cable Mesh Sock Grip

1. Start the lacing from the eye end or anchoring end of the cable grip.

2.Thread the lace from through the first two loops of the split and pull.

3. Don not pull the lace too tight at this stage, leave a space between adjoin-ing loop roughly equal to the width.

4. As you continue the length, pull the open side of the grip, as wide apart as required.

5. Try to achieve an even and net lace-up as this assists with the strength of the grip when pulling.

6. Finally tie the end of the lace, once or twice round the end of the grip, twisting the end together securely,  Excess lace can be cut off.

Wire rope cable grip for following outdoor cable;

1, Telecom cable

2, Fiber cable

3,Coaxial cable

4, Feeder cable

5, Hybrid cable

6, Corrugated cable

7, Smooth cable

8, Braid cable





OPGW Site Optical Fiber Cable Tools Construction Mesh For Telecom Cable 0

OPGW Site Optical Fiber Cable Tools Construction Mesh For Telecom Cable 1

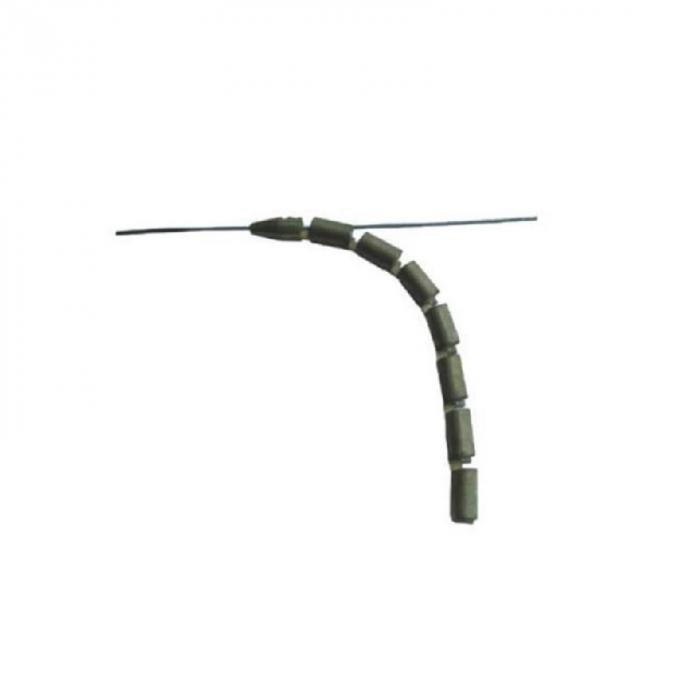

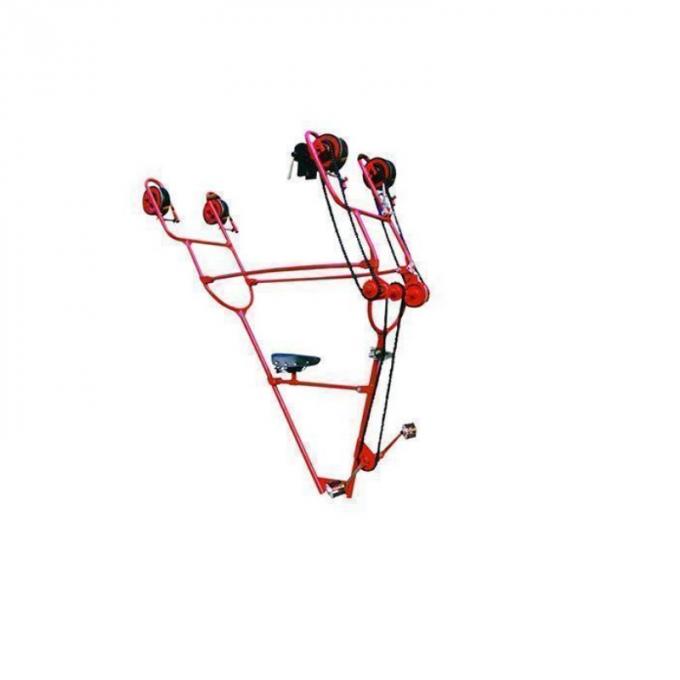

Optical Fiber Cable Stringing Equipment:

OPGW Site Optical Fiber Cable Tools Construction Mesh For Telecom Cable 2OPGW Site Optical Fiber Cable Tools Construction Mesh For Telecom Cable 3
